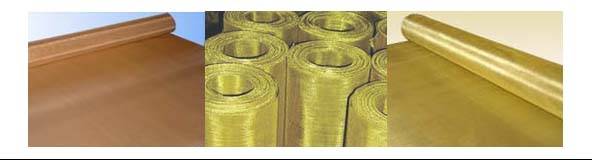

Brass Wire Mesh

Material£ºbrass wire.

Uses£ºBrass wire is an alloy of copper and zinc, offers much better abrasion resistance, better corrosion resistance and lower electrical conductivity as compared with copper wire. Hebei General Metal Netting Co., Ltd produces Brass Wire Mesh for sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas.

Weave the method£ºplain weave and twill weave.

plain weave
twill weave

Brass wire mesh H60 H80
mesh/inch

wire diameter(mm)

aperture(mm)

2 1.6 11.10
4 0.91 5.44
6 0.71 3.52
8 0.50 2.67
10 0.50 2.04
12 0.45 1.66
14 0.40 1.41
16 0.30 1.28
18 0.25 1.16
20 0.25 1.02
30 0.21 0.64
40 0.19 0.45
50 0.15 0.36
60 0.15 0.27
70 0.13 0.232
80 0.12 0.197
90 0.11 0.172
100 0.10 0.154
110 0.09 0.141
120 0.09 0.122
130 0.07 0.125
140 0.07 0.111
150 0.06 0.109
160 0.06 0.098
180 0.053 0.088
200 0.053 0.074
220 0.05 0.065
(width):0.60m-1.8m
