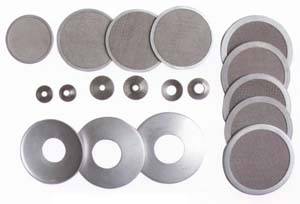

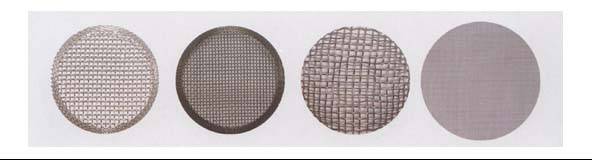

Filter Discs

Hebei General Metal Netting Co., Ltd offers metal wire mesh discs of varied materials and sizes. Typical one is low carbon steel wire woven mesh punched into circular filter. The weaving method is plain, twill, or plain Dutch and twill Dutch. Also supply welded multi-layer pack filter used in rubber industry, plastic industry, oil industry and cereal sifter.


Sizes available:

Disc diameter: from 5mm to 600mm

Fineness: from 1mesh to 2800mesh (according to specifications of filtration media)
Specification of Stainless Steel Wire Mesh Plain Weave
Mesh Wire Dia.(MM) Opening(MM) Material(AISI)
7 1.00 2.63 304 or 316
10 0.60 1.94 304 or 316
12 0.50 1.62 304 or 316
16 0.40 1.19 304 or 316
16 0.35 1.24 304 or 316
18 0.35 1.06 304 or 316
20 0.40 0.87 304 or 316
24 0.26 0.80 304 or 316
30 0.30 0.55 304 or 316
35 0.17 0.56 304 or 316
40 0.23 0.40 304 or 316
50 0.20 0.31 304 or 316
60 0.15 0.27 304 or 316
70 0.12 0.24 304 or 316
80 0.13 0.19 304 or 316
90 0.12 0.16 304 or 316
100 0.10 0.15 304 or 316
120 0.09 0.12 304 or 316
150 0.063 0.11 304 or 316
180 0.053 0.09 304 or 316
200 0.053 0.07 304 or 316
220 0.05 0.065 304 or 316
250 0.04 0.062 304 or 316
270 0.035 0.06 304 or 316
