Reinforcing Mesh



  • Manufactured in strict accordance to SANS 1024:1991 standards
  • Welded Mesh mats can be detailed as either flat or bent sheets, depending on the job requirements
  • Welded Mesh reinforcement mats are the most commonly used form of prefabricated reinforcement and is particularly suitable for flat slab construction. Other designed applications would be for pile caps, retaining walls, shear walls as well as beams and columns
  • Welded Mesh reinforcement reduces construction time considerably
  • SABS designated fabric mats are standard welded reinforcement mats and can be scheduled simply by reference to the fabric type, sheet dimensions and bending shape code. (The reference is the nominal mass of the fabric in Kg/m2 x 100)
  • The wire used in WM reinforcement fabric has a characteristic strength (0.2% proof stress) of 485 MPa compared to 450 MPa for high tensile rebar. Fabric may be used at higher stresses than high tensile rebar resulting in a material saving of approximately 8%.




We offer heavy type Welded Wire Mesh Panels, Steel Bar Welded Wire Mesh, Reinforcing Mesh.
Wire diameter for welded steel bar panels ranges from 4mm to 12mm.
Panel width: 100cm to 300cm.

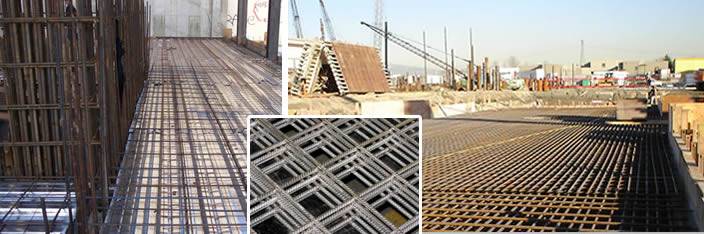

Applications: Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
We can process by customer's requirement .
heavy type welded mesh panel
,ribbed or no, suit for concrete construction,hard jointing and structure.





Mesh size [1] Mesh size [1] Wire sizes Wire sizes Area[2] Area[2] Weight [3] Sheets [4] Sheet weight (kg) Sheets per bundle Square metres per tonne
BS Reference Main Cross Main Cross Main Cross (Kg)









Square























A 393

200mm

200mm

10mm

10mm

393mm²

393mm²

6.16

15

70.96

18

162.34

A 252

200mm

200mm

8mm

8mm

252mm²

252mm²

3.95

22

45.50

28

253.16

A 193

200mm

200mm

7mm

7mm

193mm²

193mm²

3.02

29

34.79

34

331.13

A 142

200mm

200mm

6mm

6mm

142mm²

142mm²

2.22

40

25.57

46

450.45

A 98

200mm

200mm

5mm

5mm

98mm²

98mm²

1.54

57

17.74

60

649.35

Structural























B 1131

100mm

200mm

12mm

8mm

1131mm²

252mm²

10.90

8

125.57

10

91.74

B 785

100mm

200mm

10mm

8mm

785mm²

252mm²

8.14

11

93.57

14

122.85

B 503

100mm

200mm

8mm

8mm

503mm²

252mm²

5.93

15

68.31

18

168.63

B 385

100mm

200mm

7mm

7mm

385mm²

193mm²

4.53

20

52.19

24

220.75

B 283

100mm

200mm

6mm

7mm

283mm²

193mm²

3.73

24

42.97

30

268.10

B 196

100mm

200mm

5mm

7mm

196mm²

193mm²

3.05

29

35.14

36

327.87

Long























C 785

100mm

400mm

10mm

6mm

785mm²

70.8mm²

6.72

13

77.41

16

148.81

C 636

100mm

400mm

9mm

6mm

636mm²

70.8mm²

5.55

16

63.94

20

180.18

C 503

100mm

400mm

8mm

5mm

503mm²

49.0mm²

4.34

20

50.00

26

230.41

C 385

100mm

400mm

7mm

5mm

385mm²

49.0mm²

3.41

26

39.28

30

293.26

C 283

100mm

400mm

6mm

5mm

283mm²

49.0mm²

2.61

34

30.07

32

383.14

Wrapping























D 49

100mm

100mm

2.5mm

2.5mm

49.1mm²

49.1mm²

0.77

129

7.76

50

1298.70


Mesh size [1] Mesh size [1] Wire sizes Wire sizes Area [2] Area [2] Weight [3] Sheets [4] Sheet weight (kg) Sheets per bundle Square metres per tonne
BS Reference Main Cross Main Cross Main Cross











A 393M

200mm

200mm

10mm

10mm

393mm²

393mm²

6.16

23

44.35

26

162.34

A 252M

200mm

200mm

8mm

8mm

252mm²

252mm²

3.95

35

28.44

30

253.16

A 193M

200mm

200mm

7mm

7mm

193mm²

193mm²

3.02

46

21.74

50

331.31

A 142M

200mm

200mm

6mm

6mm

142mm²

142mm²

2.22

63

15.98

50

450.45

B 785M

100mm

200mm

10mm

8mm

785mm²

252mm²

8.14

17

58.61

20

122.85
