Stainless Steel Wire Cloth for Screen Printing

Stainless Steel Wire Clothes for Screen Printing are manufactured on state of the art looms and are particularly noted for their high levels of reproducibility. These precision products, many of which are manufactured using wire drawn in-house, are produced on state of the art looms in air conditioned cleanroom environment by skilled craftsmen, and meet even the most stringent demands of the electronics printing industry.
This kind of wire cloth represents the latest generation in high strength, precision woven screen printing meshes manufactured from stainless steel. Stainless steel wire cloth is ideal for electronics printing, circuit board, glass printing and ceramic printing industry with regard to mechanical strength, accuracy of registration and dimensional stability. General offers a comprehensive range of specially manufactured fine wire cloth for screen printing applications. Stainless steel wire cloth will allow accurate printing of fine lines, at the same time offering smooth ink passage and coverage.
Our wire cloth for screen printing can be used for the screen printing of bottles, flacons, drinking glasses, decorative glasses, high value ceramic fittings, vases, crockery and so on.
The combination of these benefits makes General wire cloth perfect for applications where registration, controlled ink deposits and color uniformity are critical. And for the most demanding applications and finest detail, there is our Calendering CT Foil Mesh.

Ideal applications include:
  • Printed Circuit Boards
  • Solder mask
  • Solar cell
  • Nomenclature
  • Membrane Switch
  • Thick film technology
  • Glass bottles and hollow glassware
  • Key pads
  • Architectural & Flat Glass
  • Scales/Dash boards
  • Electro Luminescent
  • Liquid crystal displays
  • Thermo Plastic
  • Ceramics including wall tiles


  • Mesh Opening
    W
    um
    Wire
    Diameter
    d
    mm
    Number of wires
    Per cm  per inch
    (mesh)  (n)
    Open Area
    Ao
    %
    Mesh Thickness
    Average Min-Max
    D    D
    um   um
    Theoretical lnk
    Volume
    Vth
    cm3/m2
    Recommended Screen Tension at
    N/cm  N/cm
    224 0.1 31   80 48 215\5.0 \5.0 103 63-65
    160 0.075 43   105 46 162\4.0 \4.0 75 44-46
    140 0.065 49   120 47 140\3.0 \3.0 65 39-41
    125 0.065 53   135 43 140\3.0 \3.0 61 42-44
    118 0.056 57   145 46 120\2.5 \3.0 55 38-40 35-47
    100 0.05 67   165 44 110\2.5 \3.0 49 36-38 33-35
    95 0.065 71   180 46 102\2.5 \3.0 47 33-35 29-31
    90 0.040 77   200 48 90\2.5 \3.0 43 31-33 25-27
    75 0.036 90   230 46 80\2.5 \2.0 37 30-32 22-24
    63 0.036 97   250 40 80\2.5 \2.0 32 31-33 25-27
    56 0.036 109   270 37 80\2.5 \2.0 30 32-34 28-30

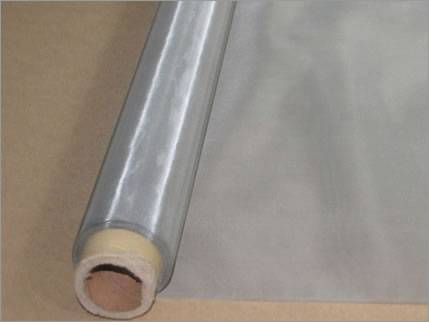

    Stainless Steel Wire Cloth for Screen Printing

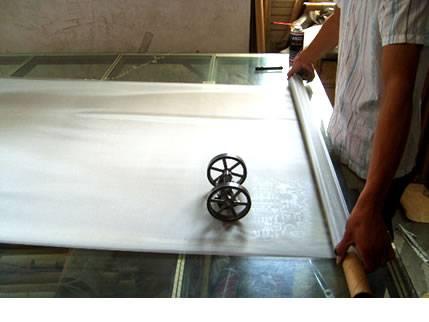

    Stainless Steel Wire Cloth for Screen Printing
