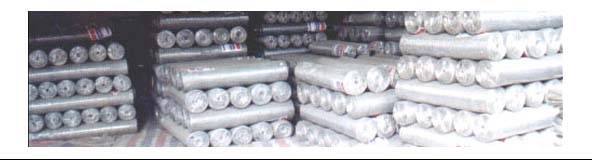

Galvanized Square Wire Mesh

Material£ºselected high-quality plain steel wire.

Uses£ºwindow screening, safety guards on machinery enclosures. It's also used in filtering liquid and gas, sieving grain.

Characteristics£ºgood corrosion and rust resistance.
plain weave
twill weave
Galvanized Square Wire Mesh
mesh/inch wire diameter(mm) aperture(mm)
3 1.60 6.87
4 1.20 5.15
5 0.95 4.13
6 0.80 3.43
8 0.70 2.43
10 0.60 1.94
12 0.55 1.56
14 0.41 1.40
16 0.35 1.24
18 0.30 1.11
20 0.27 1.00
22 0.25 0.90
24 0.23 0.83
26 0.20 0.78
28 0.18 0.73
30 0.15 0.70
35 0.14 0.59
40 0.14 0.50
50 0.12 0.39
60 0.12 0.30
