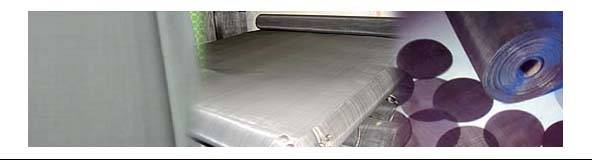

Black Wire Cloth

Material£ºSuper quality low carbon steel wire.


Uses:Black Wire Cloth is mainly used in filtration of rubber, plastic, petroleum and grains industry.


Weave and the characteristic£ºPlain or twill woven wire cloth. Can be processed into filter discs of various sizes.
Specialists in cut to size panels in all shapes including, squares, rectangles and circles in all materials and mesh sizes.

plain weave twill weave
plain dutch weave twill dutch weave

Black Wire Cloth
mesh/inch wire gauge BWG wire diameter(mm) aperture(mm)
10x10 23 0.61 1.93
12x12 24 0.55 1.566
14x14 25 0.51 1.30
16x16 26 0.45 1.13
18x18 29 0.35 1.06
20x20 26 0.46 0.81
20x20 27 0.416 0.85
20x20 31 0.295 0.97
24x24 29 0.35 0.708
30x30 31 0.295 0.55
30x30 30 0.315 0.53
30x30 35 0.213 0.63
40x40 32 0.274 0.36
40x40 33 0.254 0.38
40x40 34 0.234 0.40
40x40 35 0.213 0.42
40x40 36 0.193 0.442
50x50 34 0.234 0.274
50x50 35 0.213 0.29
50x50 36 0.193 0.31
50x50 37 0.172 0.33
56x56 36 0.193 0.26
56x56 37 0.172 0.281
56x56 38 0.152 0.30
60x60 37 0.172 0.25
60x60 38 0.152 0.27
80x80 39 0.132 0.18
