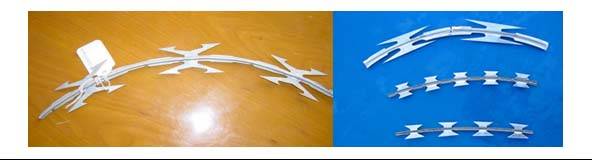

Razor Barbed Wire

Material: Galvanized blade, stainless steel blade.


Uses: Razor Barbed Wire mainly serves in protecting of grass boundary, railway, highway, etc.



Razor barbed tape is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

Currently, barbed tape has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.




Reference Number

Blade Style

Thickness

Wire Dia

Barb
Length

Barb
Width

Barb
spacing

BTO-10

0.5¡À0.05

2.5¡À0.1

10¡À1

13¡À1

26¡À1

BTO-15

0.5¡À0.05

2.5¡À0.1

15¡À1

15¡À1

33¡À1

BTO-22

0.5¡À0.05

2.5¡À0.1

22¡À1

15¡À1

34¡À1

CBT-65

0.6¡À0.05

2.5¡À0.1

65¡À2

21¡À1

100¡À2



Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.

Barbed Tape Wire Specification:


Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type

Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
