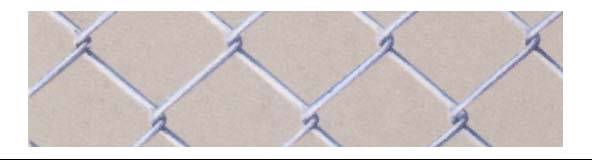

Chain Link Fence

Material: Galvanized Wire, stainless steel wire, pvc coated wire and aluminum alloy wire.

Uses: chain link security fencing for chain link gate,tennis court fencing,home garden and zoo.


Characteristic of Weaving: Woven diamond pattern provides strong, durable and flexible construction. The closely spaced diamond mesh construction gives your fence linear strength and springy texture to protect horses from injury and prevent predators from entering paddocks and pastures.


Specification of Chain Link Security Fencing System
mesh(inch) gauge No.BWG wire diameter(mm£© wire diameter(mm£© weight/sqm£¨kg£©
1/2" 14 2.108 0.0830 4.4
3/4" 12 2.769 0.1090 6.0
3/4" 14 2.108 0.0830 3.3
3/4" 16 1.651 0.0650 1.9
1" 12 2.769 0.1090 4.0
1" 14 2.108 0.0830 2.4
1" 16 1.651 0.0650 1.4
1-1/4" 12 2.769 0.1090 3.2
1-1/4" 14 2.108 0.0830 1.9
1-1/2" 10 3.404 0.1340 4.0
1-1/2" 12 2.769 0.1090 2.7
1-1/2" 14 2.108 0.0830 1.6
2" 8 4.191 0.1650 4.2
2" 10 3.404 0.1340 3.0
2" 11 3.048 0.1200 2.5
2" 12 2.769 0.1090 2.0
