Dutch Woven Wire Cloth
Material£ºStainless steel wire,Nickel wire,Brass wire.
Uses£ºUsed in gas, liquid filter separated from other medium to spend mainly. Used in the spaceflight, petroleum, chemical industry; According to the mechanical trade JB/T5979-92 standard organization's production, this standard consults and adopts international standard IS04783/1-1990.

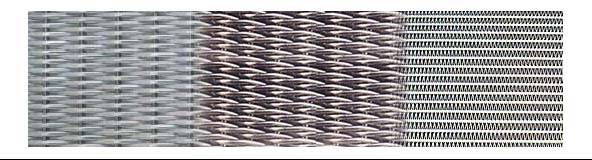

Weave the method£ºPlain Dutch Weave,Twill Dutch Weave and Reverse Dutch Weave.
|
 |
| plain weave |
 |
| twill dutch weave |
|
| Plain Dutch Weave Wire Cloth |
| Type |
Mesh/Inch(Warp x Weft) |
Wire Diameter
£¨MM£© |
Weight
£¨KG/M2£© |
Filtering value |
| 28# |
7*50 |
0.7*0.54 |
4.5 |
315 |
| 33# |
8*60 |
0.55*0.45 |
3.64 |
280 |
| 40# |
10*72 |
0.5*0.38 |
3.22 |
250 |
| 50# |
12.5*80 |
0.45*0.34 |
2.94 |
200 |
| 60# |
15*88 |
0.43*0.31 |
2.81 |
160 |
| 70# |
18*100 |
0.4*0.275 |
2.61 |
140 |
| 80# |
20*110 |
0.35*0.25 |
2.32 |
125 |
| 100# |
25*140 |
0.3*0.2 |
1.96 |
100 |
| 120# |
30*150 |
0.25*0.18 |
1.68 |
80 |
| 140# |
35*180 |
0.23*0.15 |
1.47 |
70 |
| 160# |
40*200 |
0.2*0.14 |
1.3 |
63 |
| 180# |
45*220 |
0.18*0.125 |
1.22 |
56 |
| 200#1 |
50*250 |
0.15*0.11 |
0.95 |
50 |
| 200#2 |
50*280 |
0.14*0.10 |
0.84 |
45 |
| 240# |
60*300 |
0.14*0.09 |
0.8 |
40 |
| 260# |
65*320 |
0.12*0.085 |
0.75 |
36 |
| 280#1 |
70*350 |
0.11*0.08 |
0.7 |
32 |
| 280#2 |
70*400 |
0.11*0.07 |
0.68 |
31 |
| 300# |
75*350 |
0.11*0.08 |
0.78 |
30 |
| Twilled Dutch Weave Wire Cloth |
| Type |
Mesh/Inch(Warp x Weft) |
Wire Diameter
£¨MM£© |
Weight
£¨KG/M2£© |
Filtering value |
| 320(1) |
80*680 |
0.11*0.08 |
1.27 |
28 |
| 320(2) |
80*780 |
0.11*0.07 |
1.2 |
27 |
| 360 |
90*780 |
0.10*0.07 |
1.18 |
25 |
| 400(1) |
100*900 |
0.10*0.60 |
1.06 |
22 |
| 400(2) |
100*780 |
0.10*0.70 |
1.21 |
24 |
| 500 |
125*1100 |
0.08*0.05 |
0.88 |
18 |
| 600 |
150*1200 |
0.07*0.045 |
0.8 |
16 |
| 630(1) |
160*1400 |
0.063*0.04 |
0.71 |
15 |
| 630(2) |
160*1500 |
0.063*0.035 |
0.61 |
14 |
| 700 |
180*1600 |
0.06*0.033 |
0.59 |
13 |
| 795 |
200*/800 |
0.05*0.03 |
0.53 |
11 |
| 850 |
210*1800 |
0.05*0.03 |
0.563 |
10 |
| 1000 |
250*2000 |
0.04*0.027 |
0.46 |
8 |
| 1125 |
280*2200 |
0.035*0.025 |
0.42 |
6.3 |
| 1250 |
320*2300 |
0.033*0.024 |
0.41 |
5 |
| 1280 |
325*2500 |
0.03*0.022 |
0.37 |
4 |
Reverse Dutch Weave Wire Cloth
Material: Stainless steel wire , monel wire, phosphor bronze wire, brass wire and copper wire.
Properties: Very good flow rates, small pressure drop; surface is slightly structured.
Applications: Pressure and vacuum filters; filter candles.
| Specification of Reverse Dutch Weave Wire Cloth |
| Mesh/Inch (Warp x Weft) |
Wire Dia (Warp x Weft)£¨mm£© |
Wire Dia(Warp x Weft)£¨inch£© |
Open Area % |
Absolute Filter rating(um) |
| 63 x 18 |
0.40 x 0.60 |
0.0157 x 0.0236 |
60 |
220 |
| 107x20 |
0.24 x 0.60 |
0.0094 x 0.0236 |
58 |
210 |
| 170x40 |
0.20x 0.45 |
0.0079 x 0.0177 |
58 |
130 |
| 132x32 |
0.20 x 0.40 |
0.0079 x 0.0157 |
55 |
105 |
| 171x46 |
0.15 x 0.30 |
0.0059 x 0.0118 |
54 |
85 |
| 290x75 |
0.09 x 0.20 |
0.0035 x 0.0079 |
53 |
55 |
| 615x102 |
0.04x 0.16 |
0.0157 x 0.0063 |
41 |
42 |
| 615x130 |
0.04 x 0.13 |
0.0157 x 0.0051 |
49 |
22 |
| 720x150 |
0.036 x 0.10 |
0.0014 x 0.0039 |
54 |
17 |
|
