Expanded Metal

Material: Carbon steel plate, Stainless steel plate, Aluminium steel plate, Cuprum steel plate, Nickel steel plate, Titanium steel plate


Uses: Used in a wide variety of industries and daily life, as gratings, laths, screens, fences, filtration media and building decoration materials. .

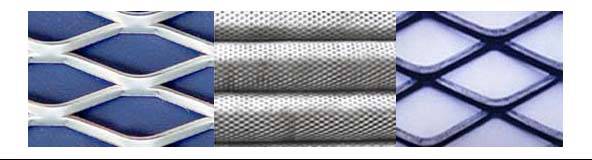

Patterns of Expandeded Metal: Expandeded Metal can be processed in different opening shapes, typically as: standard rhombic shape; heavy type Tortoise-shaped Expandeded metal, also known as hexagonal shape; flattened; and some special shapes or designs.
Expandeded Metal can be made from aluminum, carbon steel, stainless steel, nickel, titanium, brass and other metal materials, with a thickness ranging from 0.04mm to 8mm, opening ranging from 0.8mmx1mm to 200mmx150mm.

width¡Álength=A¡ÁB
width¡Álength=B¡ÁA
SWD ¡ª short way of diamond
LWD ¡ª long way of diamond

Expanded Metal
Thickness nominal size of mesh Standard size Weight
SWD LWD Strand width LWM SWM
D TL TB b B L kg/m2
0.5 3 6   100
200
2000 1.76
3.2 8
5 10
6 12.5 1800 3000 1.08
7 14
8 16 2000 3340
9 20
12 30 1.35 1800
2000
3600
4000
0.88
10 25 1.12
0.8 10 25 1.12
12 30 1.35 1.41
15 40 1.68
1.0 10 25 1.12
12 30 1.35 1.76
15 40 1.68
1.2 10 25 1.13
12 30 1.35 2.12
15 40 1.68
18 50 2.03
1.5 15 40 1.69     2.64
18 50 2.03
22 60 2.47
29 80 3.25 3.53
2.0 18 50 2.03 1800
2000
2500
3600
4000
5000
22 60 2.47
29 80 3.26 4.42
36 100 4.05
44 120 4.95 5.29
3.0 36 100 4.05
44 120 4.95
55 150 4.99 2000 5000 4.27
2500 6400
65 180 4.60 2000 6400 3.33
2500 8000
4 22 60 4.5 1500

2000
2000-3000 12.84
30 80 5 2000-4000 10.46
38 100 6 2000-4500 9.91
5 24 60 6 2000-3000 19.62
35 80 6 2000-4000 14.71
38 100 7 2000-4500 14.67
56 150 6 2000-6000 8.41
76 200 6 2000-6000 6.19
6 32 80 7   2000-4000 20.60
38 100 7 2000-4500 17.35
56 150 7 2000-6000 11.77
