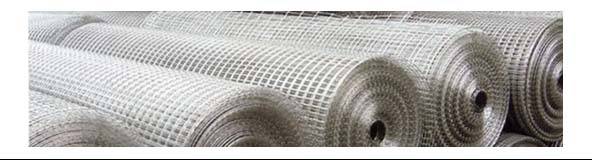

Welded Wire Mesh

Material£º Galvanized wire, stainless steel wire.


General sizes: We provide welded mesh size from 1/4" to 3", in 30m or 100' length and width of 36", 48",0.6m, 1m, 1.2m, 1.5m of roll. Other sizes are also available at customers specific requirements.


Patterns£º Galvanzied before welded and galvanzied after welded in square opening or rectangular .


General use: Welded wire mesh with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.



Welded Wire Mesh
Specification in British System Specification in British System Packing Dia.(mm)
Width/length:3'x100' Width/length:0.914mx30.48m
Width/length:4'x100' Width/length:1.219mx30.48m
Mesh Wire Dia. in BWG Mesh Wire Dia.
1"x2" 14 25.4mmx50.8mm 2.10mm 390
1"x2" 15 25.4mmx50.8mm 1.82mm 360
1"x2" 16 25.4mmx50.8mm 1.65mm 320
1"x2" 17 25.4mmx50.8mm 1.47mm 310
1"x1" 14 25.4mmx50.8mm 2.10mm 400
1"x1" 15 25.4mmx50.8mm 1.82mm 370
1"x1" 16 25.4mmx50.8mm 1.65mm 330
1"x1" 17 25.4mmx50.8mm 1.47mm 320
1"x1" 18 25.4mmx50.8mm 1.24mm 280
1"x1" 19 25.4mmx50.8mm 1.06mm 255
3/4"x3/4" 16 19.05mmx19.05mm 1.65mm 350
3/4"x3/4" 17 19.05mmx19.05mm 1.47mm 330
3/4"x3/4" 18 19.05mmx19.05mm 1.24mm 290
3/4"x3/4" 19 19.05mmx19.05mm 1.06mm 260
3/4"x3/4" 20 19.05mmx19.05mm 0.88mm 240
1/2"x1" 17 12.7mmx25.4mm 1.47mm 335
1/2"x1" 18 12.7mmx25.4mm 1.24mm 300
1/2"x1" 19 12.7mmx25.4mm 1.06mm 265
1/2"x1/2" 18 12.7mmx12.7mm 1.24mm 300
1/2"x1/2" 19 12.7mmx12.7mm 1.06mm 275
1/2"x1/2" 20 12.7mmx12.7mm 0.88mm 250
1/2"x1/2" 21 12.7mmx12.7mm 0.81mm 230
1/2"x1/2" 22 12.7mmx12.7mm 0.71mm 215
1/4"x1/4" 23 6.35mmx6.35mm 0.63mm 215
3/8"x3/8" 21 9.35mmx9.35mm 0.81mm 250
